Mastering the Art of Building Industrial Sheds: A Comprehensive Technical Overview

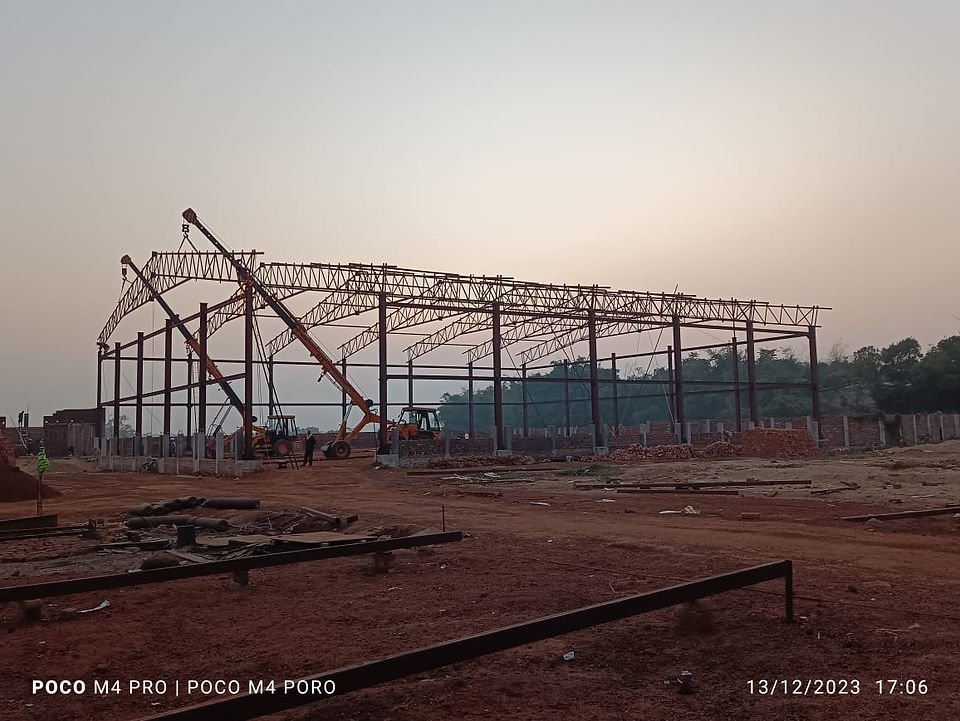

Building Industrial Sheds


Introduction:


Industrial sheds play a role, in todays landscape. These structures serve purposes providing shelter, space and functionality for industrial activities. Understanding the aspects involved in constructing efficient industrial sheds is essential to ensure structural integrity, safety and optimal performance.



The Vital Role of Building Industrial Sheds Across Different Industries:



Industrial sheds are assets that cater to a wide range of industries and their specific operational needs. Their versatility and adaptability make them indispensable across sectors.



Manufacturing Sector:


In the manufacturing industry industrial sheds serve as hubs for production activities. These spaces accommodate machinery, assembly lines and storage areas providing the shelter and ample room for manufacturing processes. The spacious floor area allows for movement of equipment and streamlined production workflows. Moreover the generous ceiling clearance, in sheds accommodates large scale machinery enabling production processes.



Warehousing and Logistics:


Industrial sheds form the backbone of warehousing and logistics operations by offering storage space for inventory, raw materials and finished goods.



The design flexibility of sheds allows for organization of goods and provides easy access, for material handling equipment optimizing storage and retrieval processes. Moreover their strategic locations near transportation hubs enhance efficiency, which in turn aids in distribution and delivery operations.



In the agriculture sector:


Industrial sheds are useful for housing farming equipment storing harvested crops and providing shelter for livestock. These structures create an environment for machinery shielding it from weather conditions and ensuring its longevity. Additionally they serve as spaces for agricultural activities such as crop processing, packaging and storage.



In the construction industry:


Industrial sheds serve as permanent workspaces. They act as workshops where construction materials, tools and equipment can be stored. These structures offer an covered environment, for construction activities that allow work even during adverse weather conditions. Furthermore their modular nature enables setup and reconfiguration to adapt to evolving project requirements.



Industrial sheds are also being increasingly utilized for retail purposes. They can function as distribution centers or retail outlets while also serving as versatile event spaces. This provides businesses with a cost solution that can meet needs.



These structures can be customized according to branding needs providing space for displays, storage and customer interactions.


Important Technical Specifications


Size – 38 meters X 33 meters:


The size of the shed plays a role, in determining its usefulness. A 38m x 33m area offers a space that can accommodate industrial operations like manufacturing, warehousing or assembly lines.


Clearance Height – 7.5 meters Top Middle Height – 12 meters:


The clearance height of 7.5 meters ensures space within the shed for equipment, machinery and operations. Additionally the top middle height of 12 meters allows for storage or accommodates taller machinery to make optimal use of the available space.


Columns – ISMB 400: By utilizing ISMB 400 columns we achieve load bearing capacity and structural stability forming a framework for the industrial shed.


Columns at Gable Site – ISMB 300: Strategically placing ISMB 300 columns at the site further strengthens the structure by providing support at critical points.


Rafters – RHS (Rectangular Hollow Sections) with dimensions:

RHS 122 X 61 X3.2

RHS96 X48 X3.2

RHS60X40X2.6



The different sizes of Rectangular Hollow Sections (RHS) for rafters are designed to fulfill load bearing requirements, across sections of the shed. This ensures optimized strength and distribution.



The support members, for the rafters which're SHS 100 X 100 X 4 Square Hollow Sections (SHS) are vital for maintaining the sheds stability and its ability to bear loads thus contributing to its overall strength.



To enhance the sheds resilience and ensure integrity during weather conditions wind ties made from SHS 72 X 72 X 3.2 serve as connections between columns safeguarding against lateral forces.



The ISMB 200 connecting members strengthen the columns by establishing connections between them. This reinforcement is essential for ensuring stability.



For the frameworks integrity and efficient distribution of loads RHS 96 X 48 X 3.2 purlins play a significant role in supporting the roof and vertical elements.



To establish a foundation that ensures even load distribution and securely anchors the columns to the ground, a base plate with dimensions of 650 X 500 X 20 is utilized.



In order to maintain stability and provide rigidity to withstand stress and distribute loads across the structure effectively connection plates with a thickness of 12 mm and stiffeners, with a thickness of 10 mm are employed. Foundation bolts measuring 24 X 900 along, with a variety of nut and bolts sized at 12, 16 and 20 mm are utilized to connect the components together ensuring a strong assembly.



In conclusion


Building Industrial Shed requires attention to detail while adhering to specific technical specifications like the ones mentioned above. By incorporating these specifications into the building process we ensure that our structures possess resilience, longevity and the ability to withstand factors. As manufacturers of sheds we prioritize these technical guidelines to deliver high quality structures that cater to our clients diverse needs. Our aim is to provide efficiency, safety and durability in every project.



Industrial sheds are indispensable in sectors and industries due to their versatile nature. These structures are designed with specifications that offer vital infrastructure for seamless operations, efficiency improvements and growth across various sectors. This underscores their significance, as a component of industrial infrastructure.
