Prefabricated Factory shed using galvalume color coated sheet  at Baruipur.

Factory Shed Baruipur.jpg

Prefabricated industry shed with civil work

Project Details

  • Length: 42 Mtr.

  • Width: 13 Mtr.

  • Height: 7.5 Mtr.

Total shed floor area  - 5875 Sqft

Total project cost as per sqft with civil work - Rs . 1031.96

Total steel weight - 29 MT

  • Column - ISMB 350 (Sail)

  • Truss - ISA 65 X65 X 8 and ISA 50 X 50 X 8 mm (Sail)

  • Roof Purlin - RHS 96 X 48 X 3.2 mm(Nezone)

  • Vertical purlin - RHS 80 X 40 X 3.2 mm (Nezone)

  • Truss bottom runner - RHS 80 X 40 X 3.2 mm (Nezone)

  • Base Plate - 20 mm (Sail)

  • Column connection plate - 10mm

  • Truss connection plate - 8 mm

  • Purlin plate - 10 mm

❁ Installation of Bhushan INDRADHANUSH 0.50 mm (Sky Blue),AZ -70, RMP coating, galvalume color coated sheet -  17900 Sqft.

❁ Installation of 2 mm polycarbonate sheet for sun light - 400 Sqft.

❁ Installation of Ridge flashing - 21 Rmtr.

❁ Installation of Eave gutter - 26 Rmtr.

Civil work

Column foundation - 15 Pcs

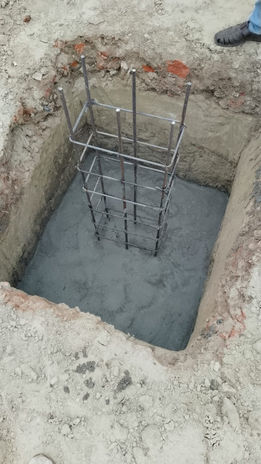

 1) Excavation - 1.8 mtr(L) X 1.8 mtr(W) X 2 mtr(H) - 15 Pcs

 2) Sand Filling - 100 mm - 15 pcs

 3) Brick soiling - 75 mm - 15 pcs ( after compaction)

 4) PCC - 150 mm using OPC RMC M25 (ACC) - 15 pcs

 5) TMT binding - 12 mm @ 150 (OMPL ) CC - 15 Pcs

 6) Base concrete - 400 mm using PPC RMC - 15 pcs

 7) Shuttering - Using PLY board

 8) Pedestal (700 mm X 900 mm ) TMT binding - Column 16 mm, Ring - 8 mm  - 15 Pcs

 9) Pedestal Concrete - Using OPC RMC M25(ACC)

 10) As per IS 456 if opc cement is used than minimum curing time is 7 days for normal condition and 10 days for dry and hot weather conditions

TIE Beam - 216 Rmtr

 1) TIE - 97 Rmtr(L) X 0.200 mtr(W) X 0.400 mtr (H) X 3 lins

 2) Sand filling - 100 mm

 3) Compaction - 216 Rmtr

 4) Brick soiling - 75 mm brick flat soling

 5) TMT Binding - Main - 12 mm, Ring - 8 mm

 6) Shuttering - Using PLY board

 7) Concrete - Using OPC RMC M25 (ACC)

 8) Curing time - As per IS 456 if opc cement is used than minimum curing time is 7 days for normal condition and 10 days for dry and hot weather conditions

Flooring - 5875 Sqft

1)Excavation up to - 320 mm

2)Sand filling - 100 mm using black sand

3)Compaction - Using man power.

5)Cover with 300 microns

4)TMT binding with 10 mm @ CC 150 mm

5)Concrete 100 mm using OPC RMC M25 (ACC)

6)Barricade for water for curing for min. 20 days

Drawing of This Factory Shed with civil DWG
